SF PMSM 20 FT Fan

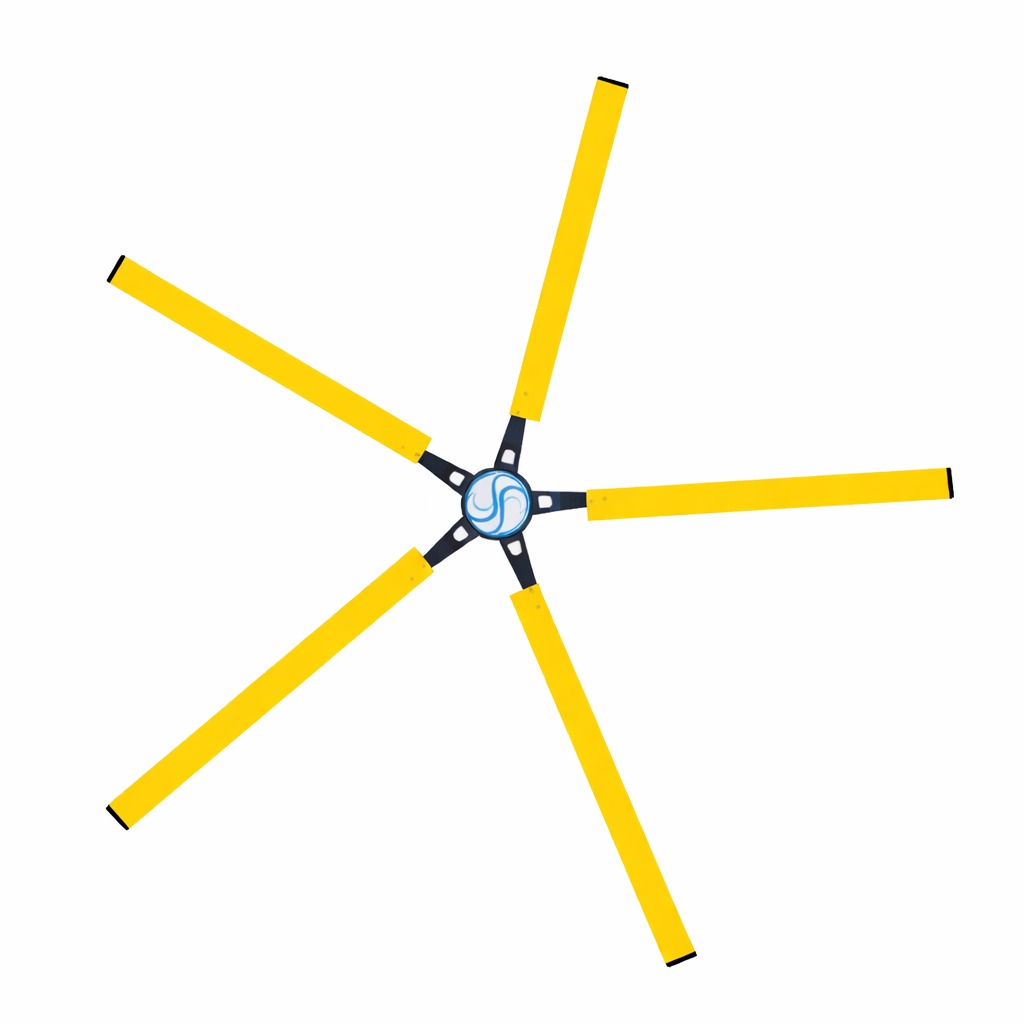

20-ft (6.0m) Softwave HVLS Fan

Motor Specifications

• Motor Type: Permanent Magnet Synchronous Motor, Gearless, Brushless
• Speed: 60 RPM
• Power Consumption: 1100W

Fan Specifications

• Fan Diameter: 20 FT / 6.0 M
• Blade Material: Anodized/6063-T6 Aluminum
• Sound Level: < 50 dB

Physical Dimensions & Weight

• Weight: Not specified in image

Power & Efficiency

• Standard Power Input: 200-240 VAC, 50/60 Hz, 1 Phase

Performance Metrics

• Airflow: 3,50,000 Cubic Ft/Min (350,000 CFM)
• Temperature Reduction: 10-7° cooler air

Control Options

• Connection: Wired Remote

Safety Features

• 2 x Safety Guy Wires from Motor to each blade
• 2 x Safety Guy Wires from Ceiling Extension to Ceiling
• Fan Mechanical Safety System incorporates Automotive Grade Hub and Guy Wires
• Fasteners: High tensile industrial bolts of 10.9 grade
• All Safety Material are of SS304 material to ensure maximum safety

Design Features

• PMSM motor uses permanent magnet to generate torque in rotor with intelligent control
• Aerodynamic blades: Five-blade airfoil design optimized for low speed rotary functions
• Blades inspired by falcon wings and modern aeronautics
• Designed for continuous adaptation to maximize airflow at every speed

Installation Requirements

• Optimum Height to Diameter Ratio: Height = 1.25 × D
• Extension Pipe Minimum Length: 15-20% of the diameter
• Minimum Height from Blades to Floor: 12 Ft
• Minimum Distance from Obstacle to Blades: 2 Ft

Additional Features

• 100% Made in India
• Direct Drive HVLS Fan
• Gearless system for low maintenance
• Powder coated mounting plate (6mm) and expansion pipe (5mm thick) in black
