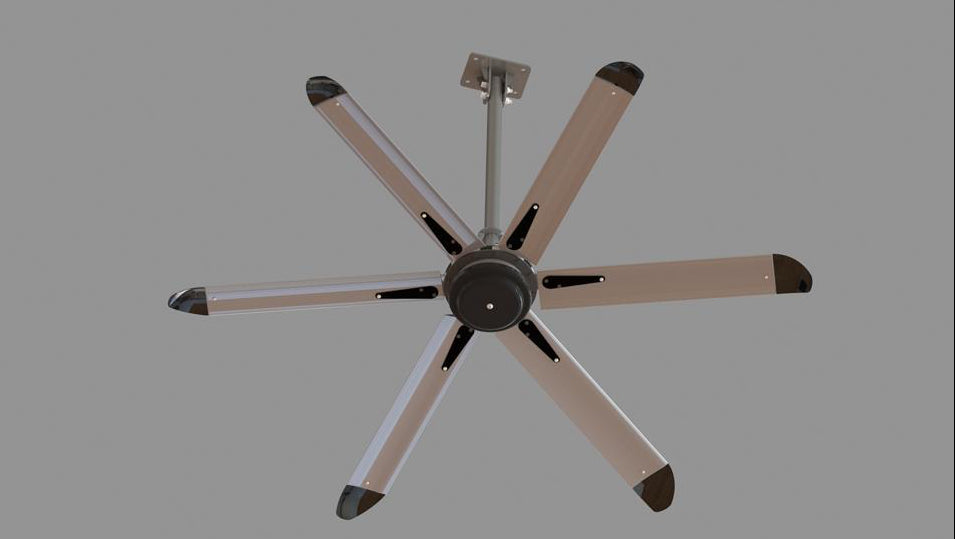

Key Specifications
Motor Performance
- Motor Platform: Hx Motor and Controller Platform
- Maximum Speed: 120 RPM
- Power at Max RPM: 400W (0.5 hp)
- Torque at Max RPM: 30 Nm
- Motor Type: 3-Phase Permanent Magnet Synchronous Motor, Gearless, Brushless
- Technology: 5-Phase, Permanent Magnet Synchronous Motor (PMSM)
- Motor Insulation Class: Class H

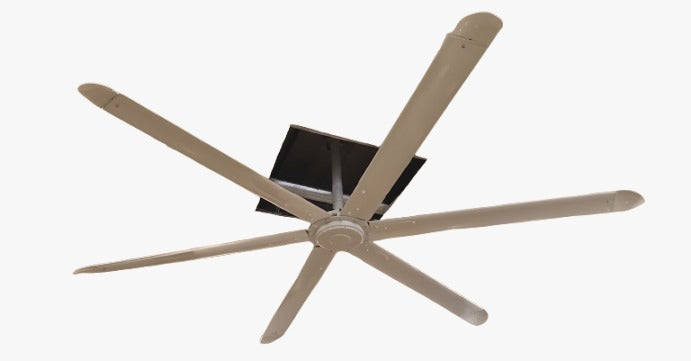

Fan Specifications
- Fan Diameter: 10-ft (3.0 m)
- Number of Blades: 5
- Blade Profile: Airfoil Design
- Blade Material: Anodized 6061-T6 Aluminum
- Blade Width: 123.7 mm
- Blade Thickness: 1.65 mm
- Blade Struts: Clear Zinc/High Tensile Steel
- Blade End Winglets: Aluminum
- Length of Down Rod: 2 Foot
Physical Dimensions & Weight
- Approximate Fan Weight: 26.8 kg (59 lbs)
- Height from Floor to Fan: > 10 ft
Power & Efficiency
- Standard Power Input: 180-240 VAC single (1) phase 50 or 60 Hz
- Power Factor at Max RPM: 0.5
- KVA Draw at Max RPM: < 0.5 KVA
- Input Current: < 4.8 A Peak to Peak or 1.7A RMS
Performance Metrics
- Coverage Area: 2,800 sq.ft (260 sq.m)
- Airflow: 245,000 CFM
- Coverage Radius: 30 feet
- Sound Level: < 50 dB
- Temperature Reduction: 4-7° cooler air
Installation Requirements
- Minimum Space from Wall: 12 feet
- Operating Height: > 10 feet from floor
Design Advantages
- Inspired by Nature: Blade design inspired by falcon wings and modern aeronautics for continuous adaptation to maximize airflow at every speed
- Gearless Direct Drive: 3-phase PMSM technology providing quiet, comforting air movement with high torque at low energy consumption
- Five Blade Configuration: Generates the most silent, efficient, and effective airflow in the industry today
- Aerodynamic Optimization: Uplift and droop design provides highest CFM with maximum safety and efficiency
- Enhanced Aesthetics: Designed for commercial spaces, indoors or outdoors
- Energy Recovery: Reverse circulation and tip vortex energy recovery reduces drag and power consumption
- Maintenance Free: Brushless, gearless design requires minimal maintenance
- Lightweight Construction: Only 26.8 kg (59 lbs) for easy installation
- Super Efficient: Less than 400W power consumption for tremendous airflow
- Versatile Applications: Ideal for lobbies, pavilions, music venues, seaside dining, and open-air theaters
Five Blade Configuration Benefits
- Maximum Airflow Efficiency: Optimal blade count for commercial applications
- Superior Air Movement: Generates industry-leading silent and effective airflow
- Energy Recovery: Recovers tip vortex energy to reduce power consumption
- Drag Reduction: Advanced aerodynamics minimize drag
- Enhanced Safety: Uplift and droop design provides highest safety standards
Control Options
- Connection: Wired
Safety Features
- Safety Guy Wires: For motor and for each blade
- Safety Certifications: UL507 for fans, UL1004 for motors, UL60730-2-9 and UL508C for drives
- Automotive Grade: Hub and guy wires
- European Compliance: Meets EU Council Directive 2014/35/EU and EN60335 standards
- Sound Certification: NABL accredited lab certification
Operational Benefits
- Reverse Circulation: Improves air distribution
- Building Preservation: Increases life of building
- Productivity Enhancement: Improves worker productivity
- Huge Power Saving: Significant energy cost reduction
- Temperature Control: Decreases surrounding temperature by 4-7°
Enhanced Aesthetics: Available in multiple colors including Silver, Blue, Black, Red, Yellow, and Green for commercial spaces
